Introduction
The KSSTI 600/80 FG3LK-IBS is a capasitive level sensor that allows to control when a label is passing through it. This sensor is digital and normally must be handled with interrupts. In this case example is showed how to use this sensor using external interrupts.
Requirements
Ethernet PLC or 20 I/Os PLC: Ethernet PLC 20 I/Os PLC
KSSTI 600/80 FG3LK-IBS: KSSTI 600/80 FG3LK-IBS sensor
Industrial Power supply: Industrial Shields Accessories
Industrial Shields boards: Install Industrial Shields boards
Description
KSSTI 600/80 FG3LK-IBS:
| Technical information | ||||||||||||||
| Operating principle | Capacitive | |||||||||||||
| Fork opening | 0,6 mm | |||||||||||||
| Branch length inside | 85 mm | |||||||||||||
| Service voltage | 10 ... 35 V DC | |||||||||||||
| No-load current | < 70 mA | |||||||||||||
| Sensitivity adjustment | Teach key + remote teach | |||||||||||||
| Switching output | Push pull, 200 mA, NO/NC, switchable | |||||||||||||
Other important data:
Label length: > 2 mm
Label interspace: > 2 mm
Label thickness: < 0,5 mm
Voltage drop: < 2,5 V
Connection: Connector, M12, 4-poled
Connecting cable: VK ...

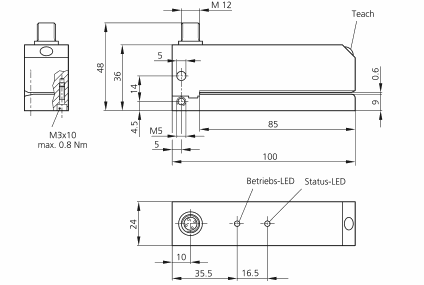

Drawing :
Connections
Final Connection:
Software
This simple sketch allows us to perform digital reading counting of the KSSTI 600/80 FG3LK-IBS label sensor every 1 sec. For this we have used the input I0.5 of our M-Duino 21+. I0.5 allow external interrupt functionality, so we must add the attachInterrupt() function to set the interrupt functionality.
As a test we will check the result monitored by the serial port, open the serial monitor to see the counting levels.
CODE:
/*
Copyright (c) 2018 Boot&Work Corp., S.L. All rights reserved
This program is free software: you can redistribute it and/or modify
it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.
You should have received a copy of the GNU Lesser General Public License along with this program. If not, see <http://www.gnu.org/licenses/>.
*/
////////////////////////////////////////////////////////////
volatile int counter = 0;
void setup() {
Serial.begin(9600L);
attachInterrupt(digitalPinToInterrupt(I0_5), count, RISING);
Serial.println('KSSTI 600/80 FG·LK-IBS started');
}
////////////////////////////////////////////////////////////
void loop() {
Serial.println(counter);
delay(1000);
}
void count() {
counter+=1;
}
